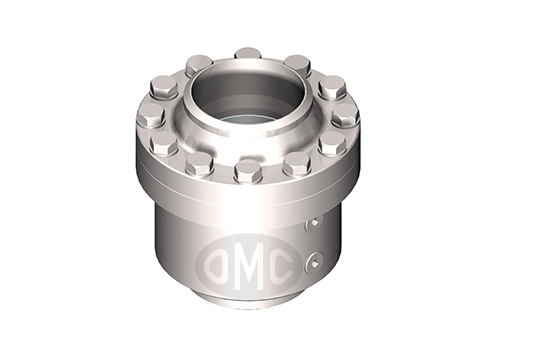

Operating Conditions

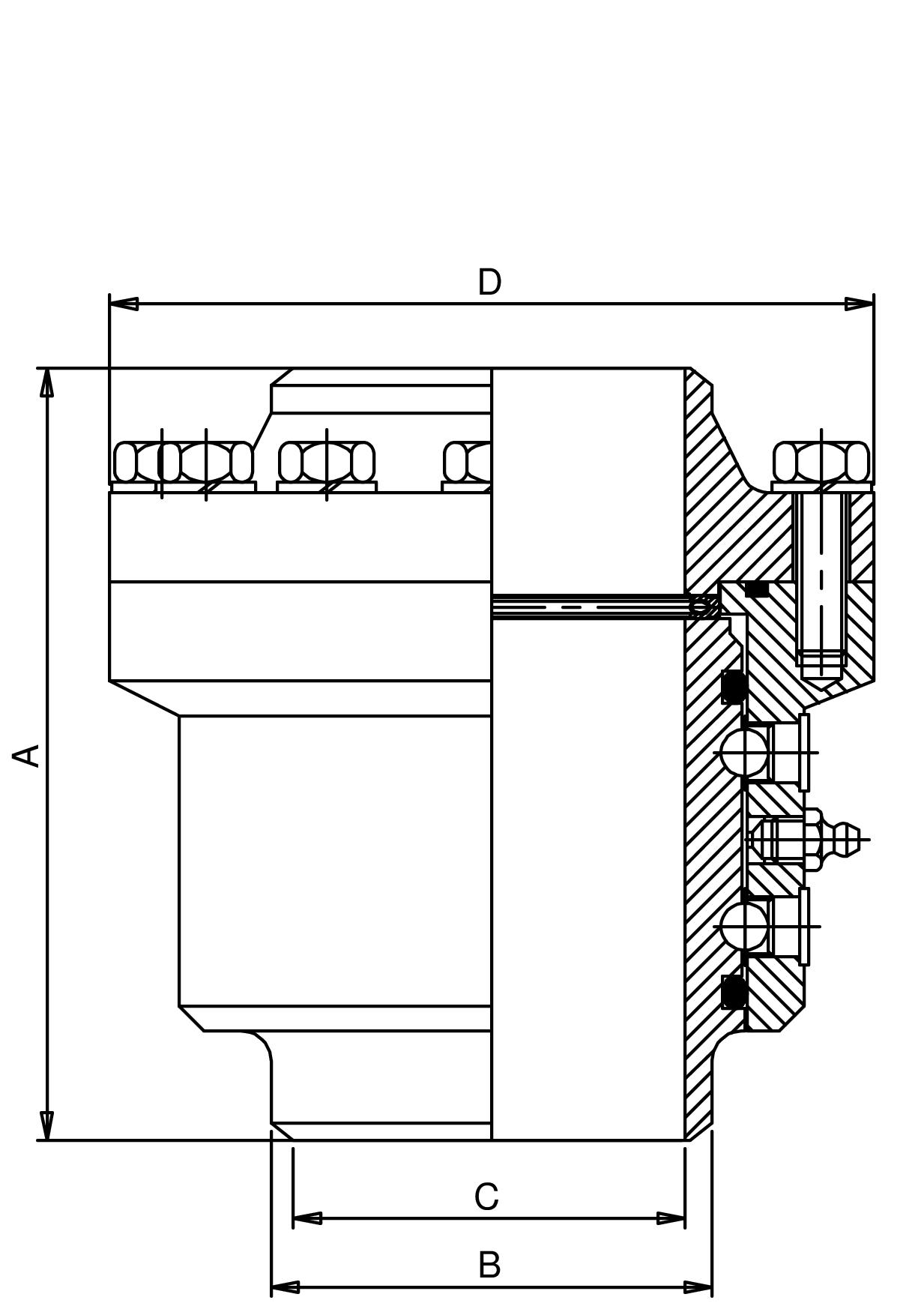

Size | 1.1/2" | 2" | 3" | 4" | 6" | 8" | 10" | 12" |
A | 126 | 129 | 155.5 | 168 | 215 | 235 | 252 | 250 |
B | 48.3 | 60.3 | 88.9 | 114.3 | 168.3 | 219.1 | 273 | 324 |
C | 41 | 52 | 78 | 102 | 152 | 202.5 | 254.5 | 303 |
D | 106 | 118 | 154 | 190 | 240 | 320 | 390 | 450 |
Kg | 4.3 | 5.1 | 8.8 | 14.2 | 27.7 | 52.3 | 67.6 | 94.3 |
Design Pressure | 40 Bar G | 40 Bar G | 40 Bar G | 40 Bar G | 10 Bar G | 10 Bar G | 10 Bar G | 10 Bar G |
